LOCTITE® 510 Gasket Sealant
Features and Benefits
slide 1 of 8
Available sizes:
This form-in-place anaerobic-curing gasketing sealant provides high temperature and chemical resistance on close fitting, rigid machined metal flanges.
LOCTITE® 510 is a high-temperature resistant, form-in-place anaerobic-curing sealant, which forms an instant, low-pressure seal when confined in the absence of air between close fitting metal surfaces. Ideal for rigid flanges, especially in transmissions and motor casings. Unprimed gap-fill is 0.25 mm (0.01"). Recommended for use with aluminum and steel substrates.
- For close fitting, rigid metal flanges
- Temperature resistant up to 204°C (400°F)
- Adapts to surface irregularities and scratches up to 0.25mm (0.01")
- Increases torque capacity of assembled flanges
- Registered to NSF Category P1
Documents and Downloads
Safety Data Sheets and RoHs

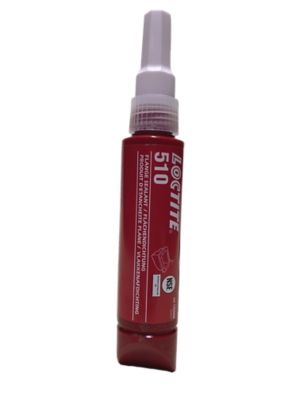

- 50 ml Tottle - IDH 142608
- 250 ml Tottle - IDH 142609
- 160 ml Standard cartridge - IDH 230410
- 50 ml Accordion - IDH 237296

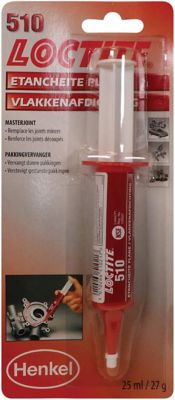

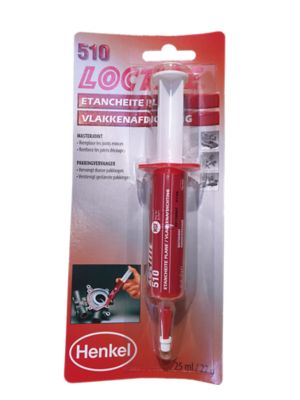

- 25 ml Blister card - IDH 488467
LOCTITE® 510, 50 ml Tottle 142608 en-FR
IDH:
142608
EAN:
5010266510347
Size Case: 50 ml Tottle
LOCTITE® 510, 250 ml Tottle 142609 en-FR
IDH:
142609
EAN:
5010266510729
Size Case: 250 ml Tottle
LOCTITE® 510, 160 ml Standard cartridge 230410 en-FR
IDH:
230410
EAN:
5010266237305
Size Case: 160 ml Standard cartridge
LOCTITE® 510, 50 ml Accordion 237296 en-FR
IDH:
237296
EAN:
5010266002989
Size Case: 50 ml Accordion
LOCTITE® 510, 25 ml Blister card 488467 en-FR
IDH:
488467
EAN:
5010266510217
Size Case: 25 ml Blister card
No documents found
Looking for a TDS or SDS in another language?
Technical Information
| Application method | Dispense system, Manual, Screen printing |
| Applications | For close fitting parts, For high temperature applications, Rigid assembly gasketing, Sealing |
| Chemical basis / base | Dimethacrylate ester |
| Color | Pink |
| Cure type | Anaerobic cure |
| Fixture time, Steel | 25.0 min. |
| Gap fill, Unprimed | 0.25 mm |
| Key characteristics | Chemical resistant, For machined, rigid flanges, Strength: medium strength, Thixotropic |
| Number of components | 1 part |
| Operating temperature | -65.0 - 400.0 °F (-55.0 - 200.0 °C ) |
| Physical form | Gel |
| Recommended for use with | Metal: aluminum, Metal: steel |
| Storage temperature | 8.0 - 21.0 °C |
| Viscosity, 20 RPM | 90000.0 mPa·s (cP) |
LOCTITE® 510
This form-in-place anaerobic-curing gasketing sealant provides high temperature and chemical resistance on close fitting, rigid machined metal flanges.
